DD Audio ATC-250

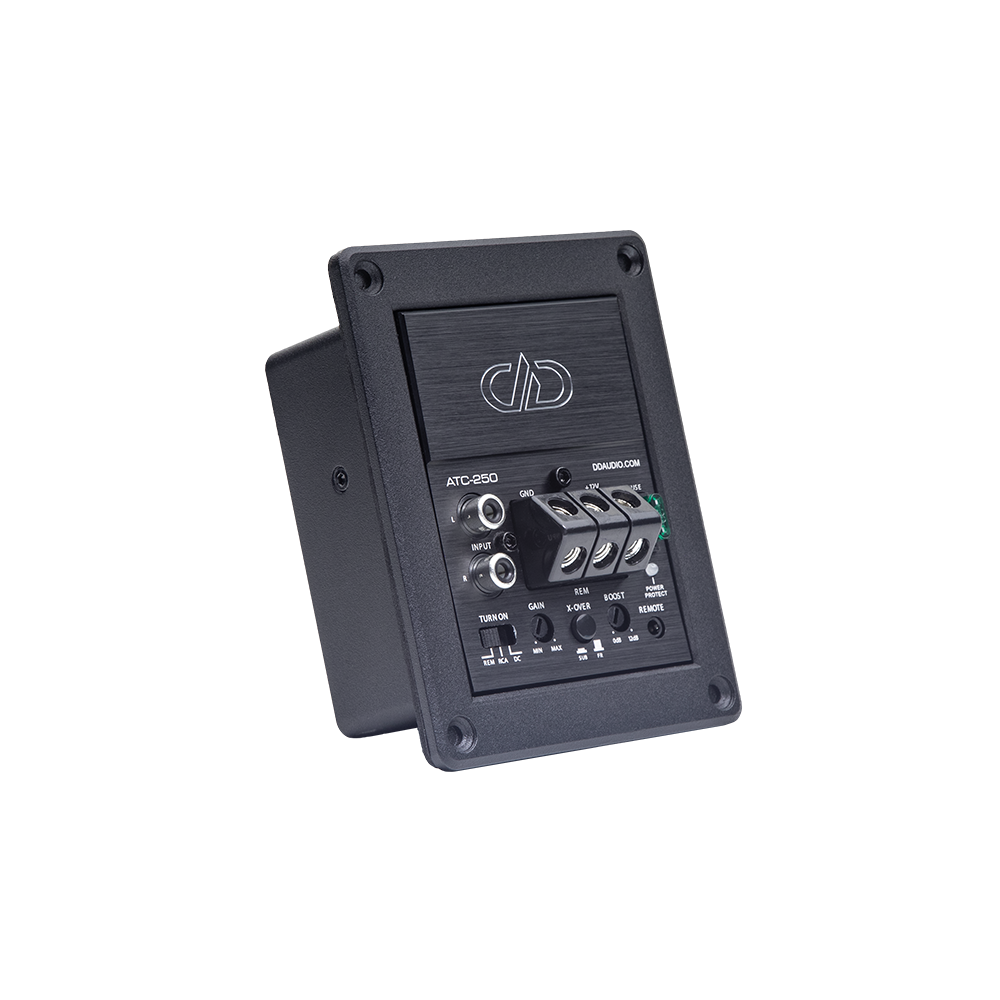

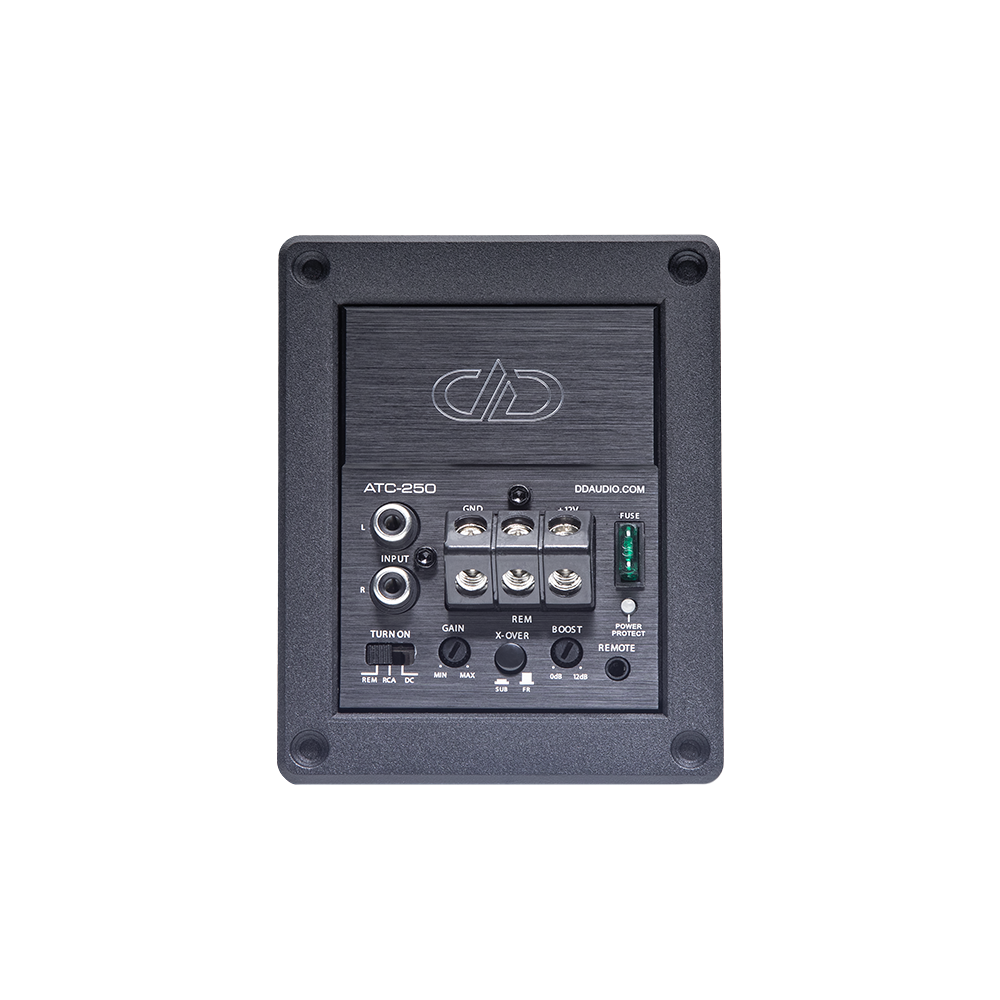

The DD Audio ATC-250 is a terminal amplifier designed to replace the original terminal on the DD Audio LE series enclosures.<br /> <br /> The installation is very easy: remove the original terminal and cut or detach the cable from it. After this, connect the enclosures cables to the ATC-250′s speaker cables (we recommend tinning the cables together and using heat shrink tubing to protect the cables), after this you can screw the amplifier to the enclosure.<br /> <br /> The DD Audio ATC-250 amplifier has two crossover filter selections: SUB (SUBWOOFER) and FR. ( FULL RANGE ). When using the SUB selection, the available frequencies are 30-80 Hz, and when using the FR selection, available frequencies are 80 Hz - 25 KHz.<br /> <br /> The ATC-250 has a remote switch: with the REM setting, it uses a traditional trigger cable, with the RCA setting, the device wakes up when a signal is received to the RCA connectors and with the DC setting device wakes up when a High level signal is received to the RCA connectores ( the adapter must be purchased separately )<br /> <br /> The package includes a wired bass level controller.<br /> <br /> (Note! The amplifier is also perfectly suitable for playing subwoofers other than LE enclosures )
