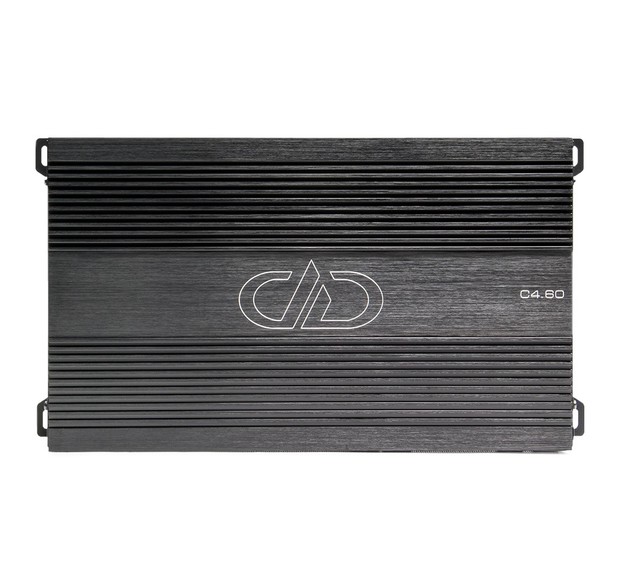

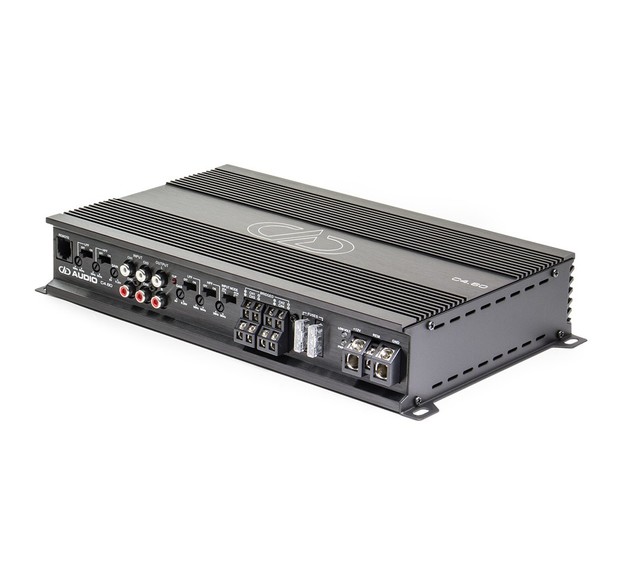

DD Audio C4.60

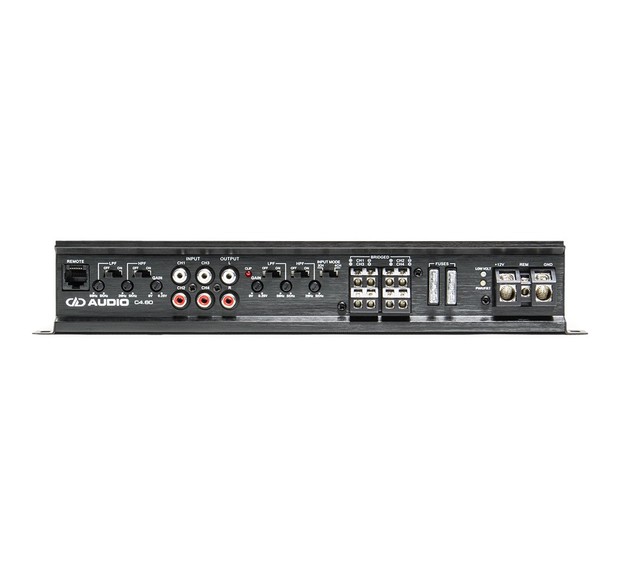

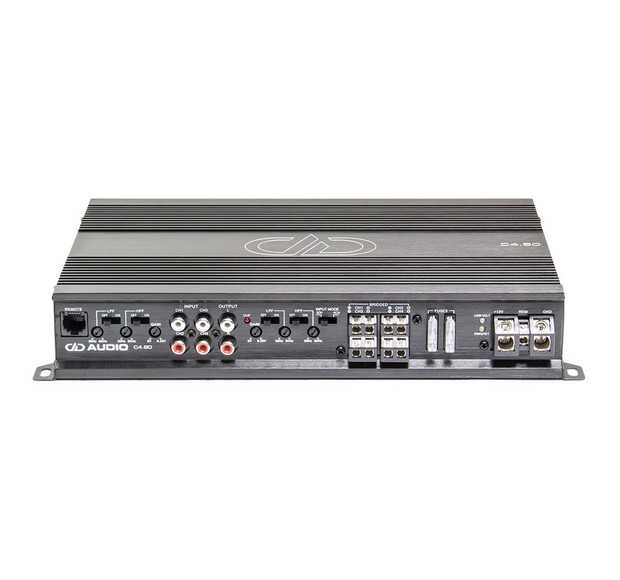

The C Series Amplifiers offer the warm sound that Class AB amplifiers are known for, along with features such as band-passable crossover networks, high-end output devices, and set screw power and speaker terminals. Four way protection circuit protects amplifier from over voltage, short circuit and over heating and dc offset protection protecs your speakers in case of a fault. The chassis design features a single side control panel giving the C Series an elegant aesthetic and makes cable management and audio adjustments easy for quick clean installations. Remote subwoofer control is optional. Output power RMS @ 4ohm60x4 / 180x2 Output power RMS @ 2ohm90x4 Max Current Draw - Amperage40A S/N Ratio86dB THD0.20% Input Voltage Sensitivity8V-0.25V Pass-Through OutputYes Remote Subwoofer ControlYes, optional Power terminals wire size 25mmq Speaker terminals wire size 2,5 mmq Dimensions: 318x175x54 mm.
