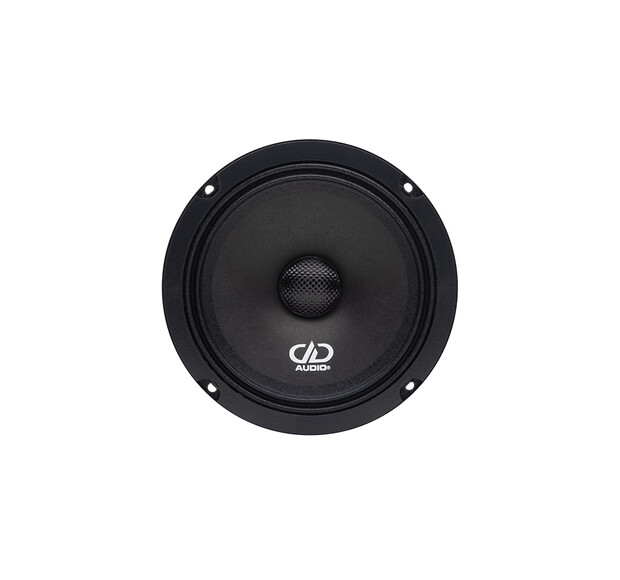

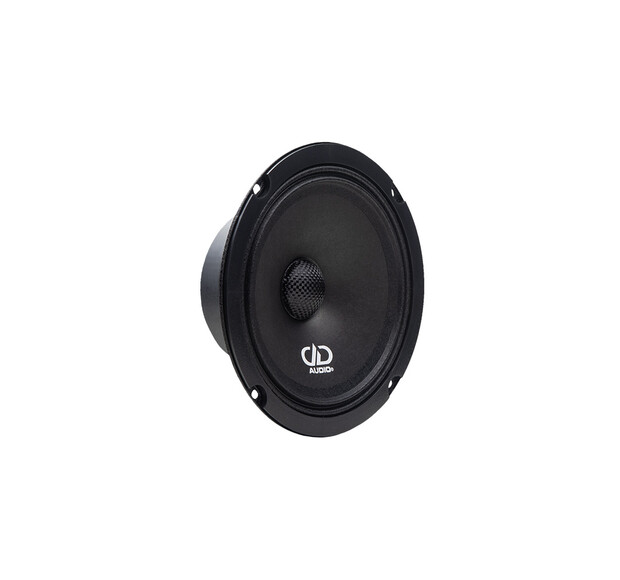

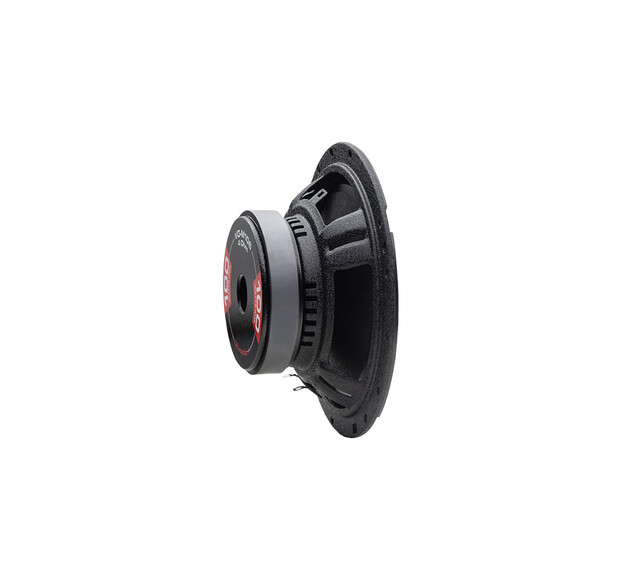

DD Audio VO-M106-S4 (par)

The VO-M100 Series are higher output, higher fidelity drivers optimized for maximum efficiency while using minimum RMS power. The ultralight moving mass is driven by a Y35 magnet system utilizing Faraday shorting rings to lower distortion and extend the frequency range. The voice coil is wound from CCA wire on a 30mm diameter, increasing long term thermal efficiency and overall sensitivity. The water resistant cone material is made with synthetic resin and the dust cap is made from carbon fiber, glued to the coil former working to extend natural high frequency transparency. All these careful design elements combine in a shallow basket structure to make installations possible in many factory (OEM) applications. Driver Size - 6.5″ 100 Watts RMS VCD - 1.25″ Impedance - 4 Ohm Frequency Response - 120Hz - 20kHz 130 Fs - Hz Qms 12.55 Qes 1.34 Qts 1.21 Vas 4.5 - liters Xmax 4 mm Susension travel 12 mm dBSPL 98 BL 4.4 Mounting Diameter 142 mm Mounting Depth 63 mm
