EDGE EDBX1800.1D-E4

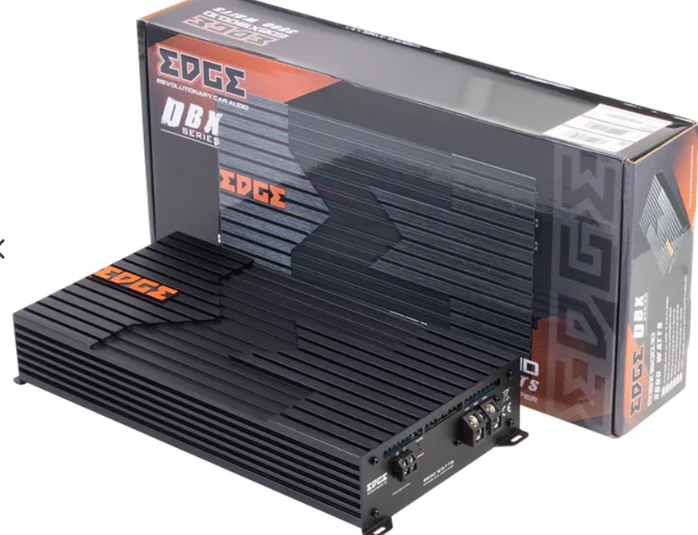

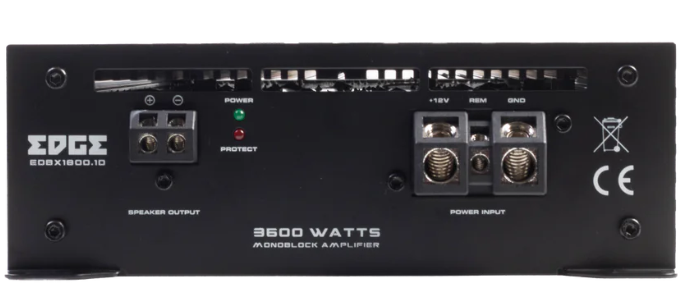

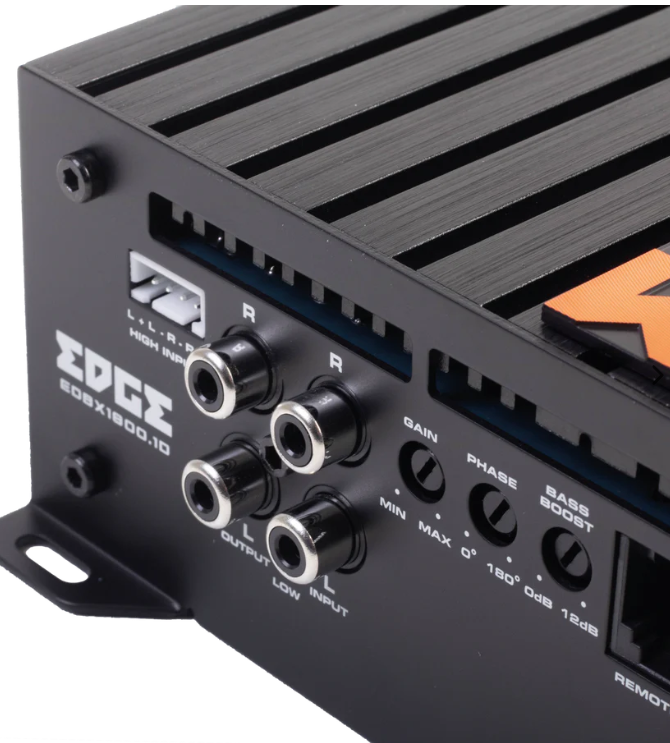

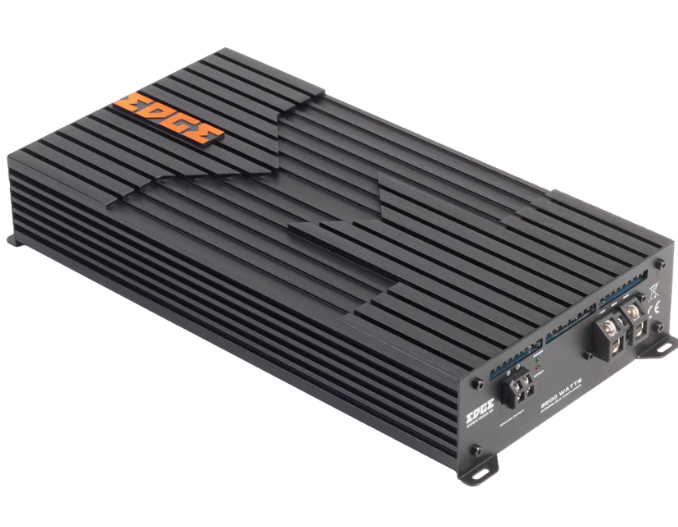

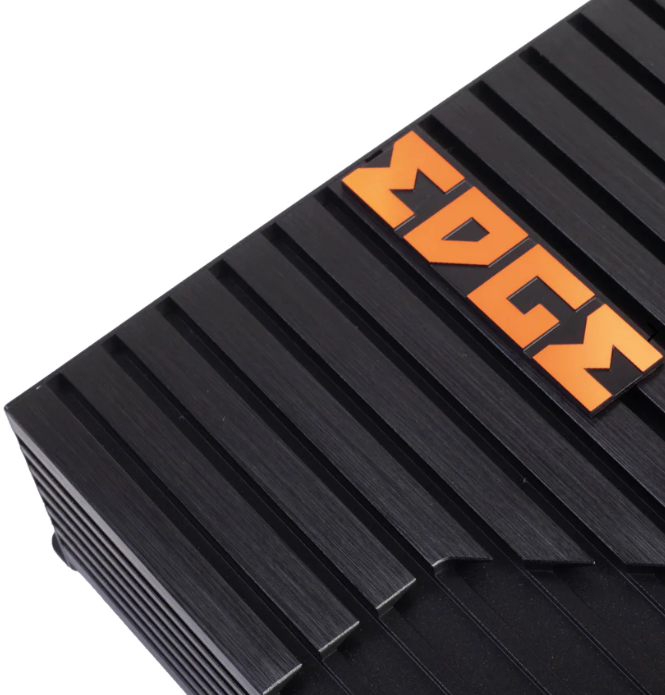

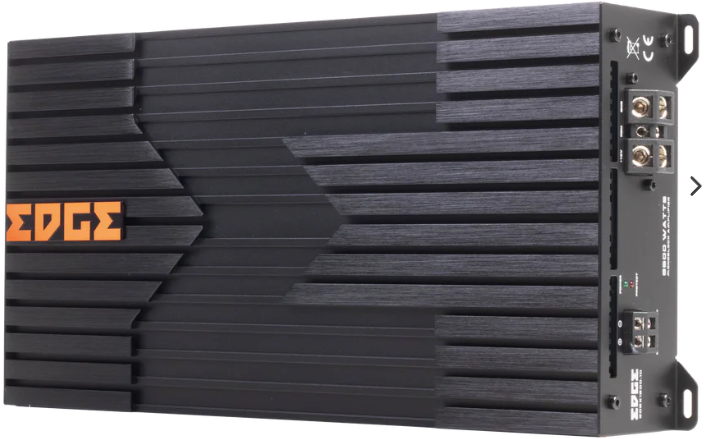

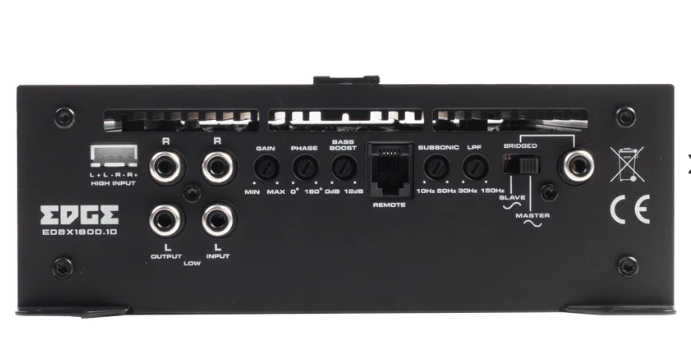

Description EDGE All new 2024 “The Big E” range of brand new Class D monoblock amplfiers to the DBX series. Our unique designed “Big E” heatsink has a high quality extruded Aluminium chassis with thick side fins for heat dissipation and our signature E engraved into the top for a subtle but very unique design. The amps come with solid die-cast 4AWG power and ground terminals, dual speaker terminals and a bass remote for fine tuning adjustability, paired with onboard adjustment for gain, bass boost, frequency and a subsonic filters these amps offer great levels of control. Finally both models offer a signal output allowing you to simply add signal to another amp in your system. Elegant, precise and powerful. Features Built in active crossover with LPF and Subsonic filter Parametric bass boost circuit with adjustable frequency Remote level control RCA input and output Specification Configuration: Monoblock RMS @ 4 Ohms Mono: 1 x 650 watts RMS @ 2 Ohms Mono: 1 x 1200 watts RMS @ 1 Ohms Mono: 1 x 1800 watts Maximum Power: 3600 watts Frequency Response: 10Hz - 180Hz Crossover Type: LP / Subsonic Crossover Range: 0Hz - 180Hz Recommended Fuse: 180A (External Fuse) Topology: Class D Installation Dimensions (H x W X D): 63mm x 363mm x 179mm (2.5" x 14.3" x 7.1")
