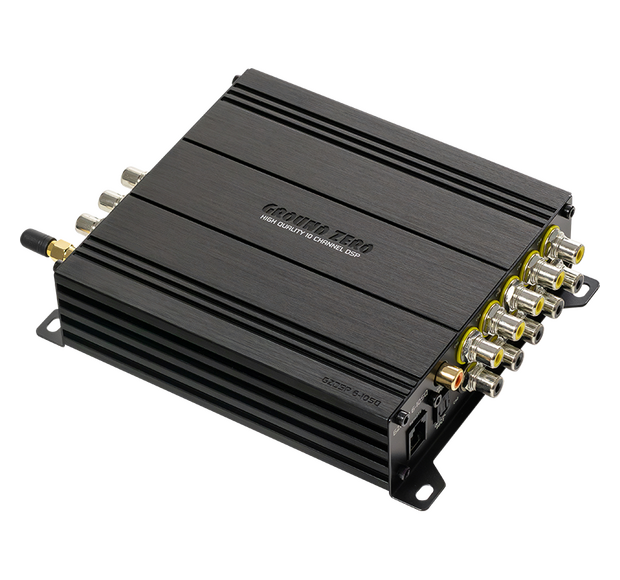

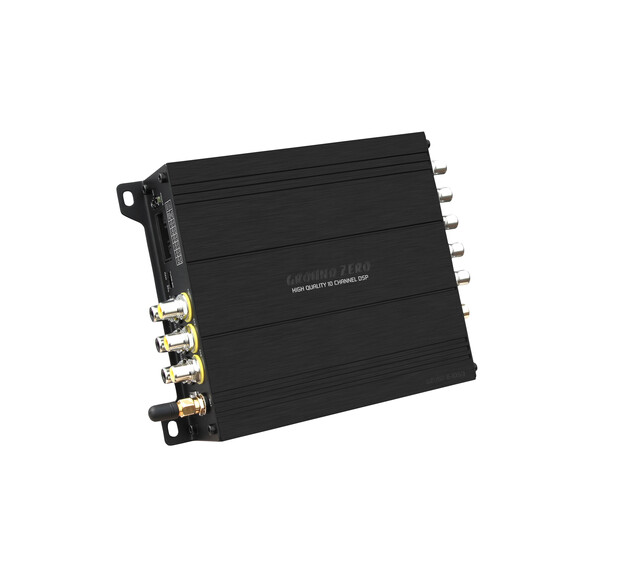

Ground Zero GZDSP 6-10SQ

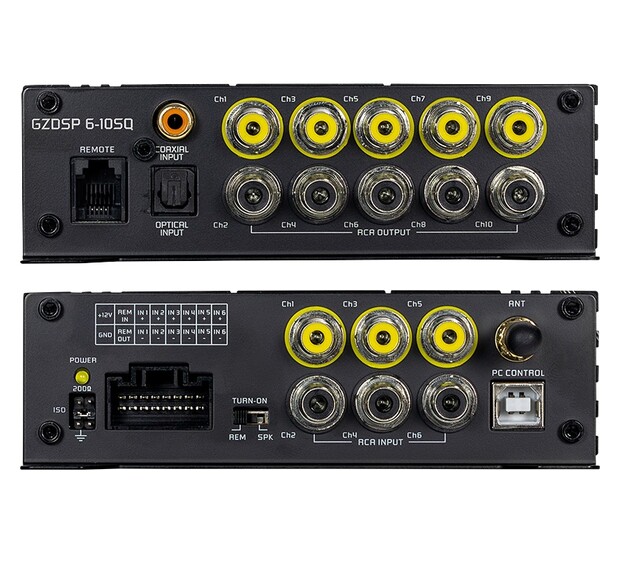

The GZDSP 6-10SQ is a digital signal processor that can significantly improve the sound quality of a car music system under certain conditions. The basis for this is a 32-bit SigmaDSP in conjunction with six 32-bit analog-to-digital and ten digital-to-analog converters. Thanks to the free combination of up to 6 input channels and a 31-band equalizer for each output channel, the GZDSP 6-10SQ can be integrated into almost any factory system. The source-specific, 7-band input equalizer also helps optimize the input signal. In addition to the 6 analog high- and low-level connections, the GZDSP 6-10SQ also offers an optical, digital and BT interface. To use your mobile device controlling the unit and changing the adjustments, please install the GROUND ZERO GZDSP 6-10SQ control app on your device (Android / iOS) and connect the separately available music streaming interface. Check the web page for further information and to download the app´s owner´s manual. Model GZDSP 6-10SQ Type 10-channel signal processor (DSP) with 6 inputs Frequency range 20 Hz – 20 KHz (-3 dB) SNR / line input ≥110dB (A-weighted) SNR / opt. and coaxial input ≥113dB (A-weighted) THD 0.002 % DSP chipset Analog Devices SigmaDSP Sensitivity Line input (RCA) max. 3V RMS High level input max. 8.0 V RMS Input impedance Line input (RCA) ≥20 kΩ Output voltage / channel ≥3,8 V Remote current max. 500 mA Remote input voltage 3 V Switching voltage / speaker input 3,2 V Turn on delay 6 seconds Recommended fuse value 5 A Operating voltage 8.5 – 16 V Dimensions 132 x 143 (171) x 40 mm / 5.20” x 5.63 (6.73)” x 1.57” (w x l x h) Software compatibility Microsoft Windows™ XP SP3, Vista, 7, 8, 8.1,10,11 Preset memory 10 presets (individually assignable) Gain range -60 bis 0 dB Equalizer 10x parametric 31 band EQ (20 Hz – 20 kHz) with adjustable Q Time delay 0 – 20 ms / 0 – 692 cm / 0-272 inch Crossover 6 – 48 dB/oct. slope with selectable filter characteristic Phase correction 0° / 180° Optionally available accessory Wired remote control GZREM 6-10 Default password for the iOS/Android app: 666666.
