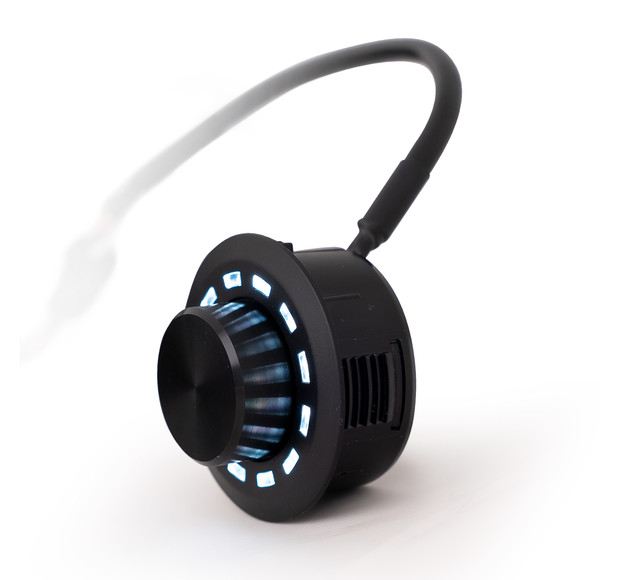

HELIX Conductor

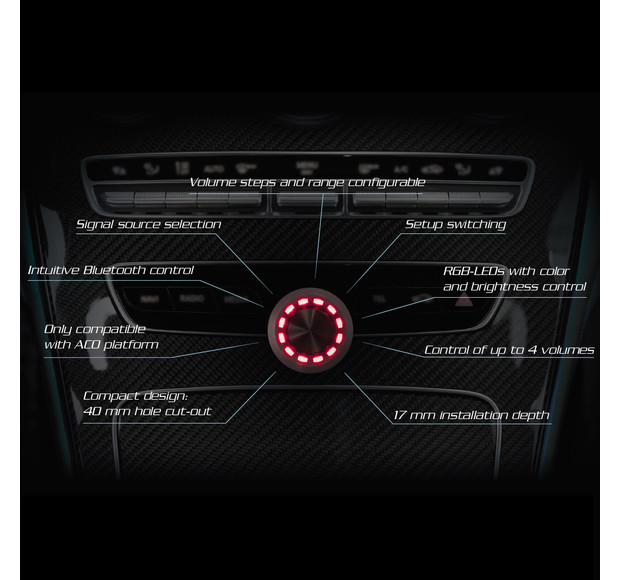

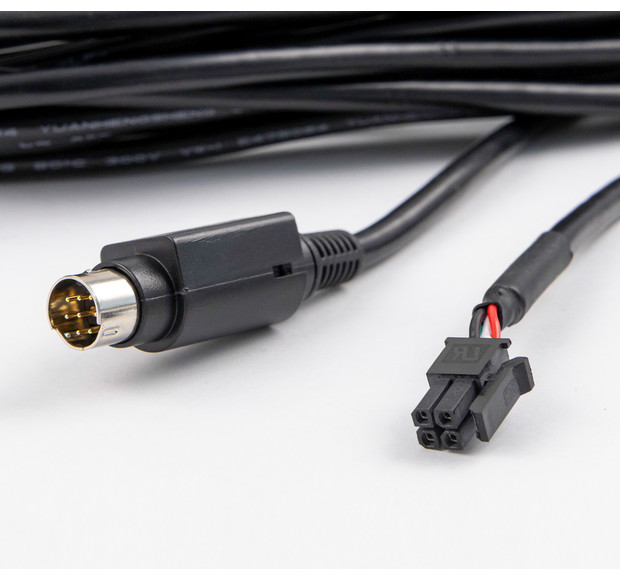

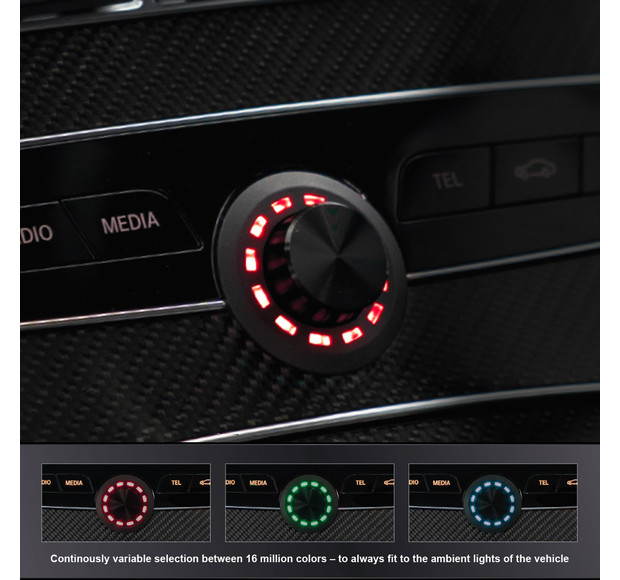

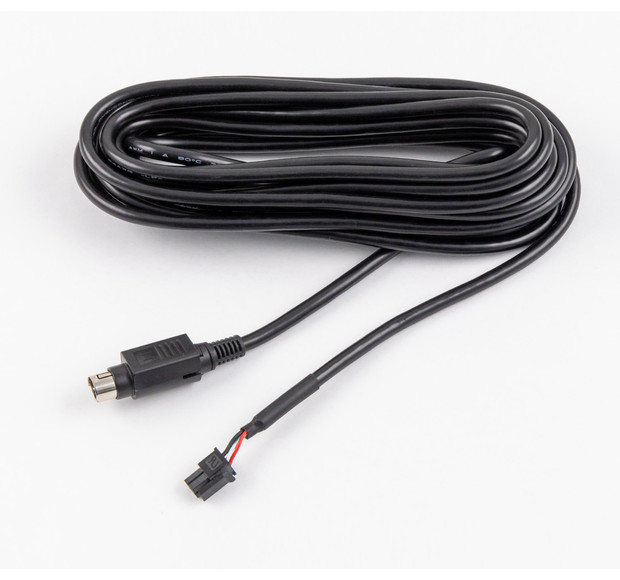

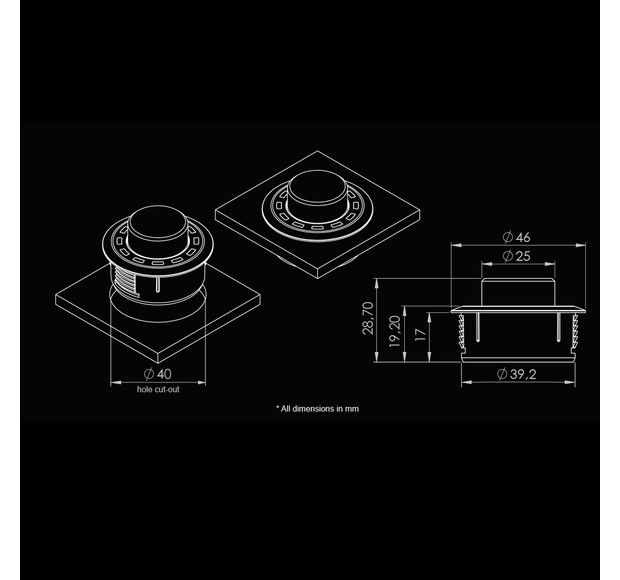

HELIX CONDUCTOR is ACO remote controller<br /> <br /> FEATURES:<br /> Up to 4 individual volume menus configurable<br /> (Master, Digital, HEC/AUX, Subwoofer, Rear Att.)<br /> • Volume range selectable (60 dB, 24 dB, 12 dB).<br /> • Volume steps selectable (1 dB steps, 0.5 dB steps).<br /> • Individual color for each volume menu configurable.<br /> Sound Setup selection between all 10 memory slots.<br /> Intuitive Bluetooth playback control and pairing activation<br /> (only for Bluetooth Extension Card).<br /> 12 x RGB-LEDs for visual feedback.<br /> • Wide color space with over 16 million colors.<br /> • Brightness and automatic dimming function<br /> configurable.<br /> Easy installation.<br /> • Flush mount installation with Ø 40 mm hole cut-out.<br /> • 5 m cable harness with split connector and single<br /> connector supply.<br /> • Optional housing for on-dash installation available<br /> soon.<br /> Full configuration and updatability through the DSP PC-Tool software.<br /> DSP PC-Tool 4.75a or higher.<br /> <br /> COMPATIBILITY:<br /> <br /> BRAX: DSP<br /> <br /> HELIX:<br /> DSP ULTRA<br /> DSP PRO MK3*<br /> DSP.3S*<br /> DSP.3<br /> DSP MINI MK2*<br /> DSP MINI<br /> V TWELVE DSP MK2*<br /> V TWELVE DSP<br /> V EIGHT DSP MK2<br /> M SIX DSP<br /> M FOUR DSP<br /> <br /> MATCH: <br /> UP 10DSP*<br /> UP 8DSP*<br /> M 5.4DSP*<br /> M 5DSP MK2<br /> <br /> Note: The CONDUCTOR is not compatible with the WIFI CONTROL or the DIRECTOR.<br /> <br /> Note 2: The CONDUCTOR is not compatible with UP 7DSP / UP 7BMW
