Helix Extension Card 2.0 – ANALOG IN

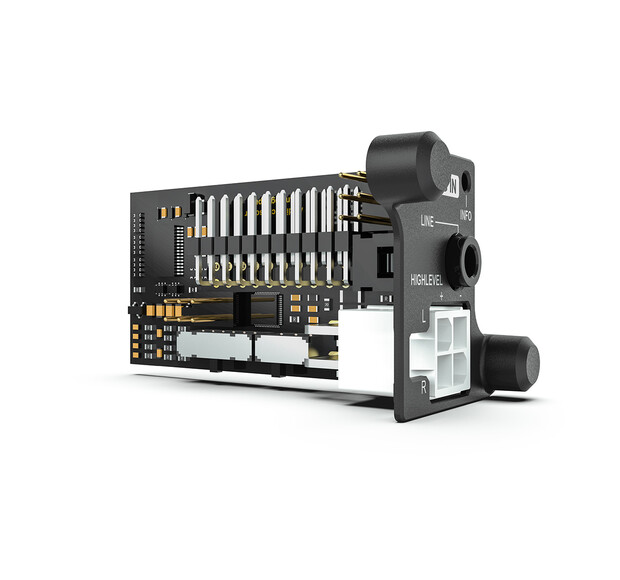

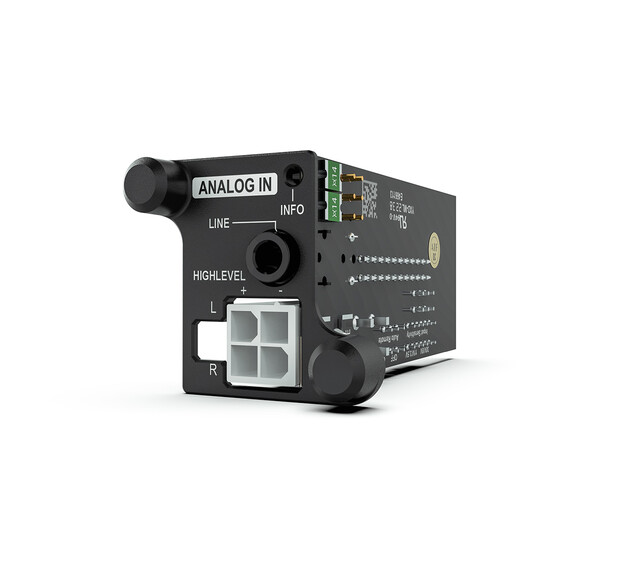

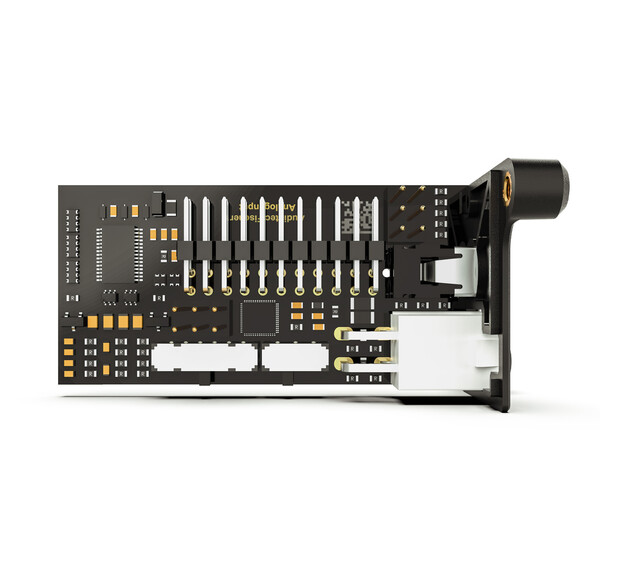

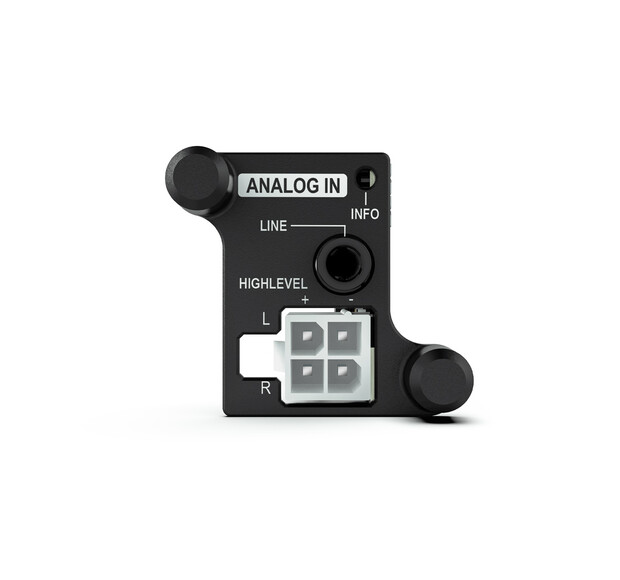

Extension Card 2.0 – ANALOG IN Two additional channels – maximum flexibility The Extension Card 2.0 ANALOG IN expands your DSP or DSP amplifier with two analog input channels – ideal for complex application scenarios, connecting additional signal sources such as a TV or smartphone, or integration into OEM premium sound systems. Whether highlevel or lowlevel signal: this module provides the right interface, offering flexible use and full configuration via the DSP PC-Tool. Comprehensive connectivity A high-quality highlevel input with ADEP.3 circuit, Auto Remote function, and adjustable input sensitivity from 1.5 to 30 V ensures seamless integration with OEM head units or factory amplifiers. For signal sources with a lowlevel output, the module offers an additional 3.5 mm stereo input with adjustable input sensitivity from 0.5 to 8 V. Freely configurable via DSP PC-Tool The inputs can be freely configured in the DSP PC-Tool – either as additional main inputs or as an AUX source. This way, the system adapts precisely to your specific needs. Seamless integration – maximum compatibility The Extension Card 2.0 ANALOG IN is compatible with all HELIX and MATCH DSP products featuring an Extension Card 2.0 slot. A module-specific plastic cover is included for easy installation into the device’s side panel. A well-designed solution for even more connection options. Features Extends the DSP device by two additional analog input channels Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts Lowlevel stereo line input via 3.5 mm jack with an adjustable input voltage range from 0.5 to 8 Volts Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source Including plastic cover panel with injected threated inserta and MOLEX connection cable for the highlevel input Made in Germany Technical data Input voltage highlevel 1.5 - 30 Volts (adjustable) Input voltage lowlevel 0.5 - 8 Volts (adjustable) Lowlevel input 3.5 mm jack Additional features ADEP.3, Auto Remote function Compatibility All HELIX and MATCH DSP devices featuring Extension Card 2.0 slot Scope of delivery 1 x ANALOG IN module 1 x MOLEX connection cable for the highlevel input 1 x Mounting screws
