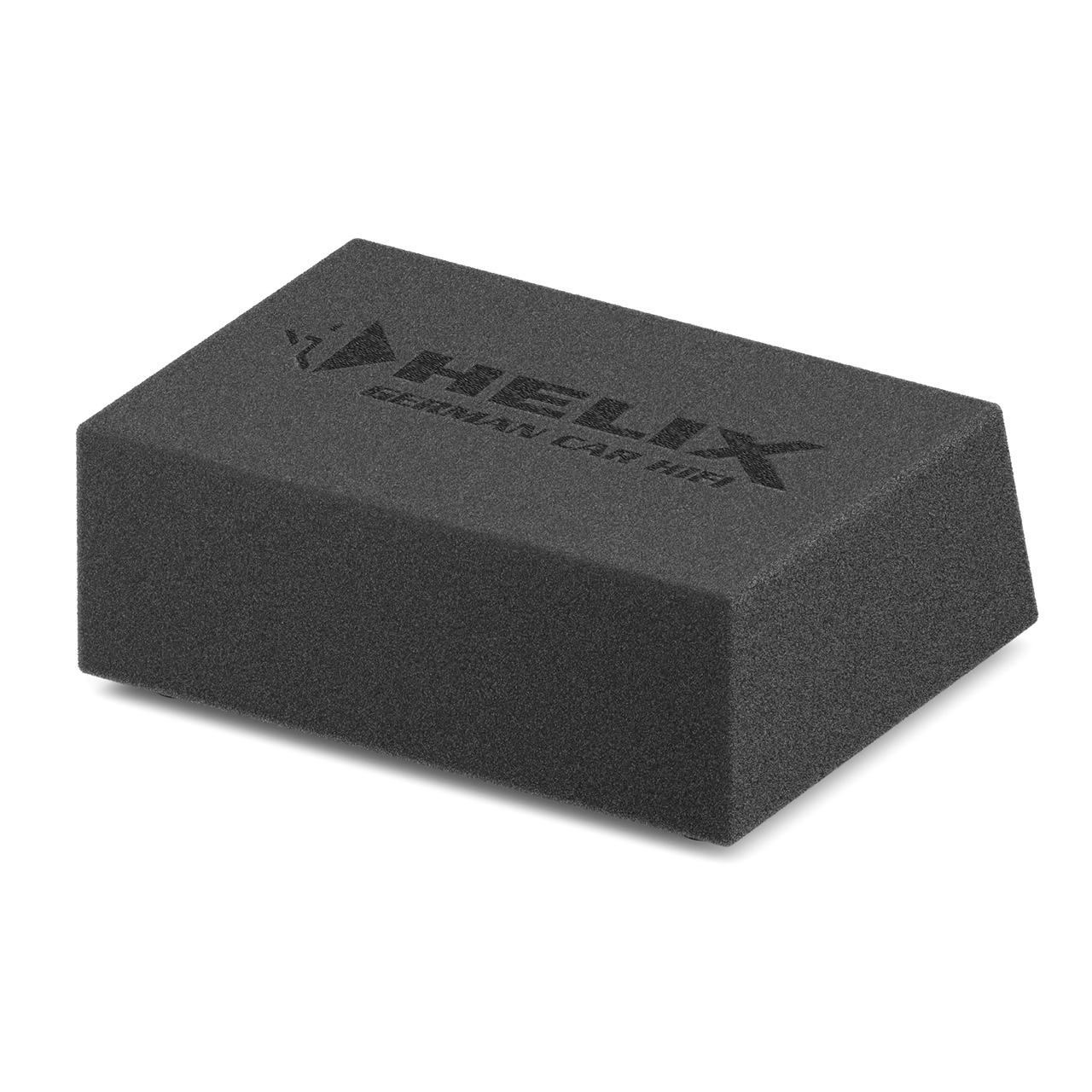

HELIX IK E10.1-SVC2

Powerful bass, compact format – the performance subwoofer for everyday use The HELIX IK E10.1 delivers deep, punchy bass in a space-saving design – ideal for those who want rich low-frequency performance without the bulk of a conventional subwoofer enclosure. Smart downfire design The intelligent downfire construction ensures optimal bass dispersion in the vehicle. It uses the vehicle floor as an acoustic reflection surface to intensify low-frequency output, offers optimum protection for the speaker, and allows for a lower-profile design. Combined with bass-reflex technology and a powerful 250 mm chassis, it provides a dynamic bass experience with impressive sound pressure while making efficient use of available space. IK E10.1-SVC2 1 x 2 Ohms Power handling RMS P 300 Watts Recommended amplifier power RMS 150 - 300 Watts Impedance 1 x 2 Ω Max. linear excursion Xmax +/- 8.0 mm Port tuning frequency Fb 43 Hz Sensitivity,SPL 91 dB @ 2.83V / 1m 88 dB @ 1W / 1m Dimensions (H x W x D) 187 x 470 x 375 mm 7.4 x 18.5 x 14.8″ Integrated subwoofer chassis HELIX IK E10.1-SVC2 Recommended DSP settings ″Self-define″ highpass 37 Hz / Q = 1.5 EQ filter: 115 Hz / Q = 0.7 / -2 dB
