Helix IK S10-SVC2 ( 1x2Ohm )
- Snabb leverans
- Personlig support vi svarar snabbt
- Säker betalning med Klarna
Behöver du hjälp att välja rätt? Kontakta oss – vi hjälper dig bygga rätt system direkt.
- VarumärkeHelix
Beskrivning
Art.nr: IK S10-SVC2
Helix IK S10-SVC2 ( 1x2Ohm )

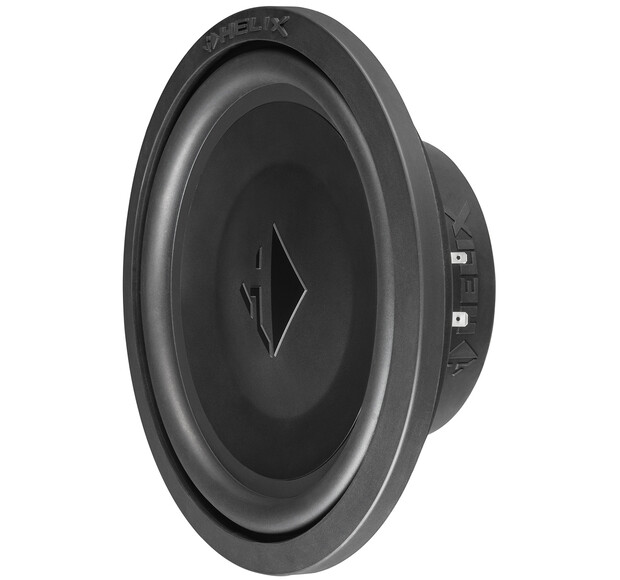

HELIX IK S10-SVC2
Flat dimensions – deep bass
With the shallow HELIX IK S subwoofers, the realization of particularly flat and compact enclosure designs shouldn’t be a problem anymore. Its extremely low installation depth opens up new installation possibilities that do not require making any acoustic compromises at all. Additionally, thanks to the use of large voice coils and its low resonant frequency, the HELIX IK S series delivers an absolutely stunning bass performance, which is in no way inferior to larger dimensioned woofers.
Smart down to the very last detail
The enormously stiff sandwich paper cone in conjunction with our heavy-duty drive system easily converts amplifier power into powerful sound pressure without any compression effects, while simultaneously demonstrating finesse when it comes to more subtle beats. A special highlight: the magnet system has a threaded hole on the back and thus allows the woofer to be fixed to the back panel of the enclosure. Since every millimeter of depth counts in flat constructions, enclosure vibrations are effectively reduced – even with thin walls.
Komplett utrustning för dig som bygger själv
In addition to the high-quality connection terminal with gold-plated screw terminals, a solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency or DSP settings in our technical data sheet.
Egenskaper
Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
1 x 2 Ohms single voice coil
Magnet system with threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations

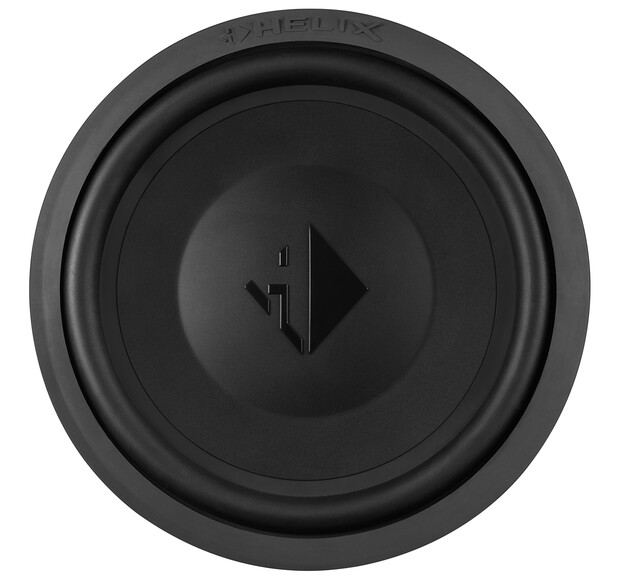

Extremely stiff sandwich paper cone
Gummikant med stor slaglängd för hög mekanisk belastbarhet
Robust magnetkåpa med HELIX-märkning som skyddar magneten
Enclosure connection terminal, grille and gasket included in delivery
Power handling RMS / max. P 300 / 600 Watts
Impedance Z 1 x 2 Ω
DC resistance Re 2.0 Ω
Resonance frequency Fs 37 Hz
Mechanical Q factor Qms 7.61
Electrical Q factor Qes 0.54
Total Q factor Qts 0.51
Compliance Cms 150 μm/N
Equivalent air volume Vas 26 L
Force factor B*I 10.1 Tm
Sensitivity SPL 93.0 dB @ 2.83V / 1m
87.0 dB @ 1W / 1m
Cone area Sd 353 cm²
Moving mass Mms 119 g
Cone material Sandwich paper cone
Mechanical resistance Rms 3.7 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 18 mm
Max. linear excursion Xmax +/- 6.0 mm
Outer diameter ø 262 mm / 10.31″
Installation diameter ø 229 mm / 9.01″
Installation depth 84.5 mm / 3.33″
Rekommenderade lådvolymer
Sealed box
Net volume 14 L
Lower limiting frequency (-3dB) 46 Hz
Rekommenderade DSP-inställningar: högpassfilter av typen ”self-define” med gränsfrekvens 45 Hz och Q = 1.3
additional EQ filter 100 Hz / Q = 1.0 / -3 dB
Vented box
Net volume 16 L
Port diameter ø 70 mm / 2.76″
Port area 38 cm²
Port length 38 cm / 14.96″
Port tuning frequency Fb 37 Hz
Lower limiting frequency (-3dB) 39 Hz
Rekommenderade DSP-inställningar: högpassfilter av typen ”self-define” med gränsfrekvens 37 Hz och Q = 1.2
additional EQ filter 95 Hz / Q = 0.7 / -3 dB
Förpackningsinnehåll
1 x Subwoofer HELIX IK S10-SVC2

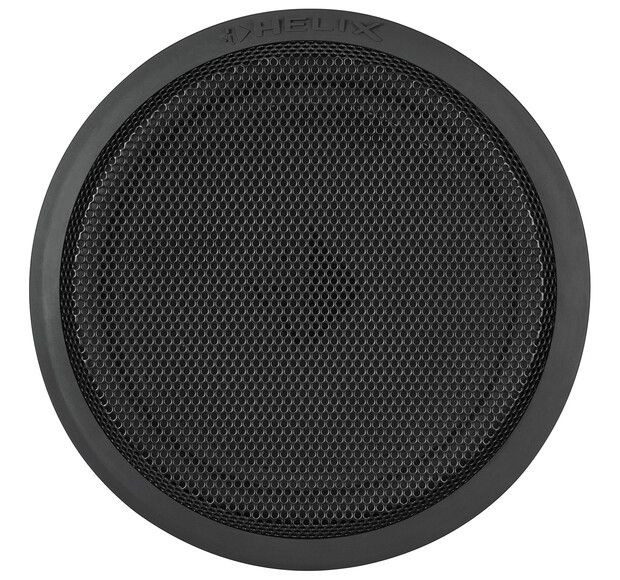

1x Grille
1 x Gasket
1x Enclosure connecting terminal
1 x Data sheet
