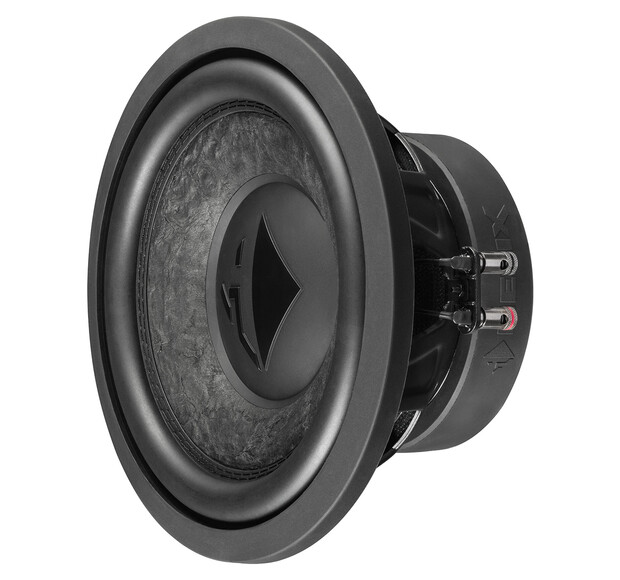

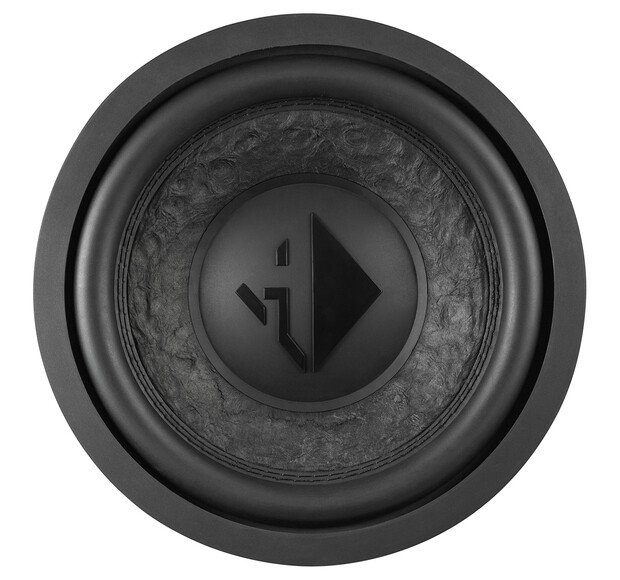

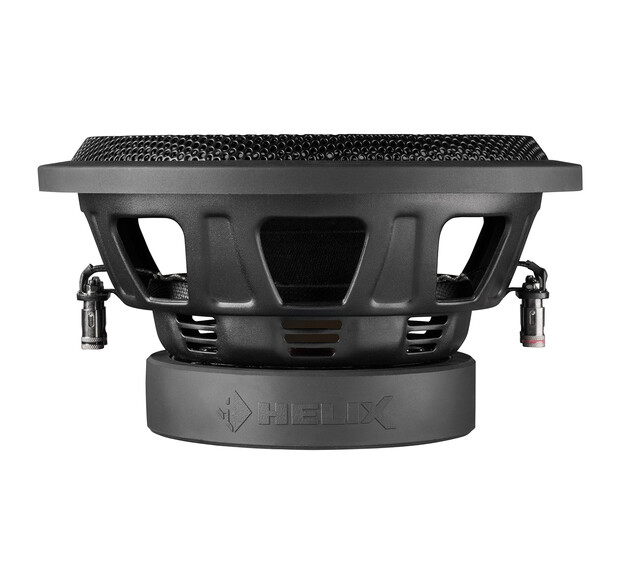

HELIX IK W10-SVC2-1 x 2 Ohm

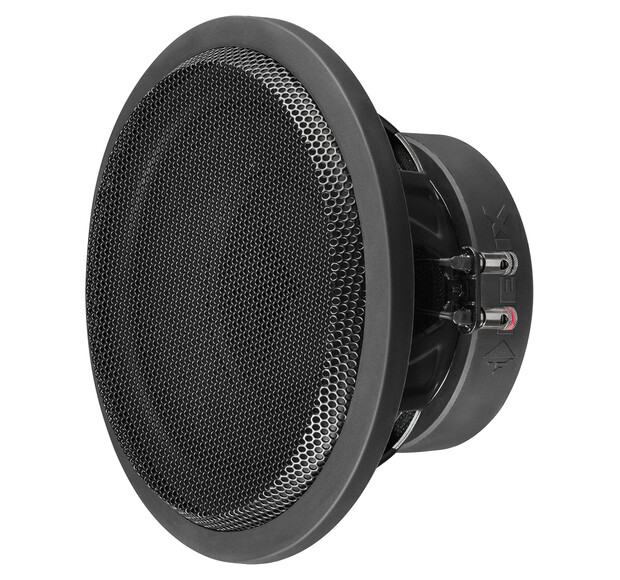

HELIX IK W10 Stunning bass performance out of compact dimensions With the new KW chassis, we’re expanding our IMPACT subwoofer lineup, offering powerful drivers for use in very compact enclosures. Especially when it comes to the most efficient usage of available space in the vehicle regarding an individual enclosure design, these woofers create completely new installation possibilities without ever compromising the acoustic performance. Clever down to the last detail The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats. Flexible connection – 2 x 2 or 1 x 2 Ohms The chassis are available as 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) version. Thus, these subwoofers always offers the right solution for every amplifier configuration to get the maximum performance out of it – whether mono, 2-channel or even multi-channel amplifier. ″All inclusive″ for self-made enthusiasts In addition, the solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet. Features 2 x 2 Ohms dual voice coil for flexible system configuration Extremely stiff, hand-scooped paper cone for outstanding impulse response Double ventilated voice coil for minimum compression effects and high power handling Long-excursion rubber surround for highest mechanical rating Solid push terminals Powerful magnet system for compact enclosures Rugged magnet cover with HELIX lettering for perfect magnet protection Grille and gasket included in delivery Power handling RMS / max. P 300 / 600 Watts Impedance Z 1 x 2 Ω DC resistance Re 1 x 2.0 Ω Resonance frequency Fs 32 Hz Mechanical Q factor Qms 5.09 Electrical Q factor Qes 0.45 Total Q factor Qts 0.41 Compliance Cms 159 μm/N Equivalent air volume Vas 25 L Force factor B*I 12.1 Tm Sensitivity SPL 93.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m Cone area Sd 333 cm² Moving mass Mms 126 g Cone material Hand-scooped paper cone Mechanical resistance Rms 6.25 kg/s Voice coil diameter ø 50.8 mm Voice coil winding height 24 mm Max. linear excursion Xmax +/- 8.0 mm Outer diameter ø 262 mm / 10.31″ Installation diameter ø 232 mm / 9.13″ Installation depth 126 mm / 4.96″ Recommended enclosure volumes Sealed box Net volume 15 L Lower limiting frequency (-3dB) 50 Hz Recommended DSP settings “Self-Define” Highpass: 38 Hz / Q = 1.4 EQ Filter: 95 Hz / Q = 1.0 / -3 dB Vented box Net volume 21 L Port diameter ø 70 mm / 2.76″ Port area 38 cm² Port length 32 cm / 12.6″ Port tuning frequency Fb 36 Hz Lower limiting frequency (-3dB) 36 Hz Recommended DSP settings “Self-Define” Highpass: 35 Hz / Q = 1.0 EQ Filter: 100 Hz / Q = 0.7 / -2 dB Scope of delivery 1 x Subwoofer HELIX IK W10-SVC2 1 x Grille 1 x Gasket 1 x Data sheet
