Match UP 10DSP

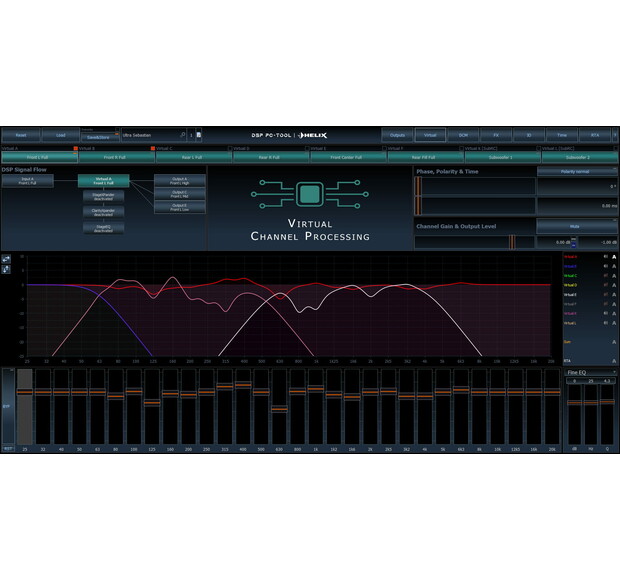

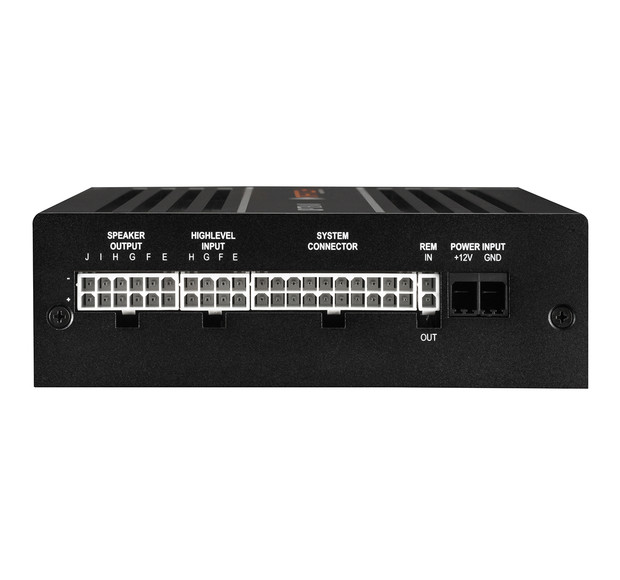

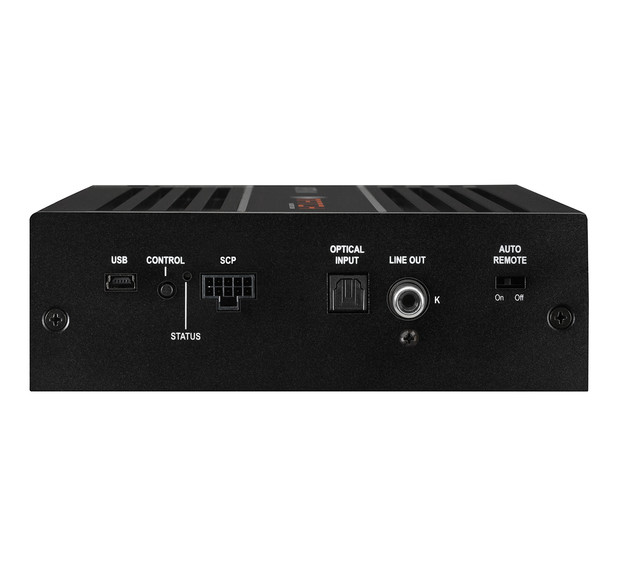

Ultra efficient 10-channel amplifier with 1-channel line output and 11-channel DSP<br /> Perfect for upgrading multi-channel factory sound systems<br /> Optional cable harnesses for easy integration into existing multi-channel factory sound systems<br /> Extremely powerful 64 Bit “fixed point” Audio DSP<br /> ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:<br /> ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals<br /> SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.<br /> High power 8-channel highlevel input with ADEP.3 circuit – two channels with up to 32 V RMS input sensitivity<br /> 1 to 1 Input / Output Routing (IOR) in combination with the optional MEC ANA-LOG IN module – same number of highlevel inputs and amplifier outputs<br /> Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems<br /> MATCH Extension Card slot (MEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.<br /> Optical input in SPDIF format with sampling rate between 12 and 96 kHz<br /> Mono RCA output for the connection of an external amplifier e.g. subwoofer amplifier<br /> SCP (Smart Control Port) for optional accessory like WIFI CONTROL, DIRECTOR, CONDUCTOR & Co.<br /> Auto Remote switch<br /> Start-Stop capability down to 6 Volts supply voltage<br /> Compact design with low heat dissipation thanks to extraordinary efficiency - @ 4 OhmsChannels A - H: 8 x 65 Watts - @ 2 Ohms- - @ 1 Ohm- - bridged @ 4 Ohms- - bridged @ 2 Ohms- - Subwoofer output @ 4 OhmsChannels I - J: 2 x 90 Watts - Subwoofer output @ 2 OhmsChannels I - J: 2 x 160 Watts Amplifier technologyClass GD Inputs8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In Input sensitivityChannels A - F: 4 - 16 Volts Channels G - H: 4 - 16 or 8 - 32 Volts Input impedance RCA / Cinch- Input impedance highlevel9 - 33 Ohms with ADEP.3 Outputs10 x Speaker output 1 x RCA / Cinch 1 x Remote Out Output voltage RCA / Cinch3 Volts Frequency response20 Hz - 22,000 Hz DSP resolution64 Bit DSP power295 MHz (1.2 billion MAC operations/second) Sampling rate48 kHz DSP typeAudio signal processor Signal convertersA/D: BurrBrown D/A: BurrBrown Signal-to-noise ratio digital input105 dB (A-weighted) Signal-to-noise ratio analog input103 dB (A-weighted) Distortion (THD) 0.03 % Damping factor 100 Operating voltage10.5 - 17 Volts (max. 5 sec. down to 6 Volts) Power ratingDC 12 V ⎓ 60 A max. Idle current500 mA Max. remote output current500 mA Fuse2 x 25 A LP-Mini-fuse (APS) Additional featuresClass GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out Dimensions (H x W x D)46 x 145 x 163 mm / 1.81 x 5.71 x 6.42″.
