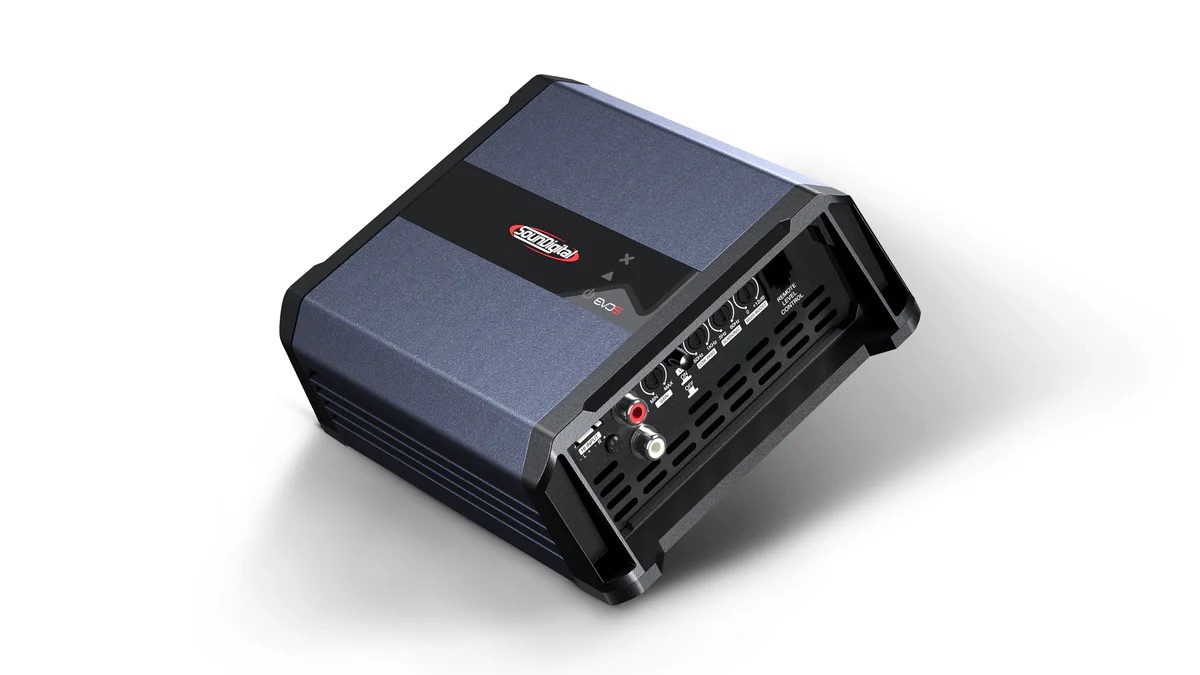

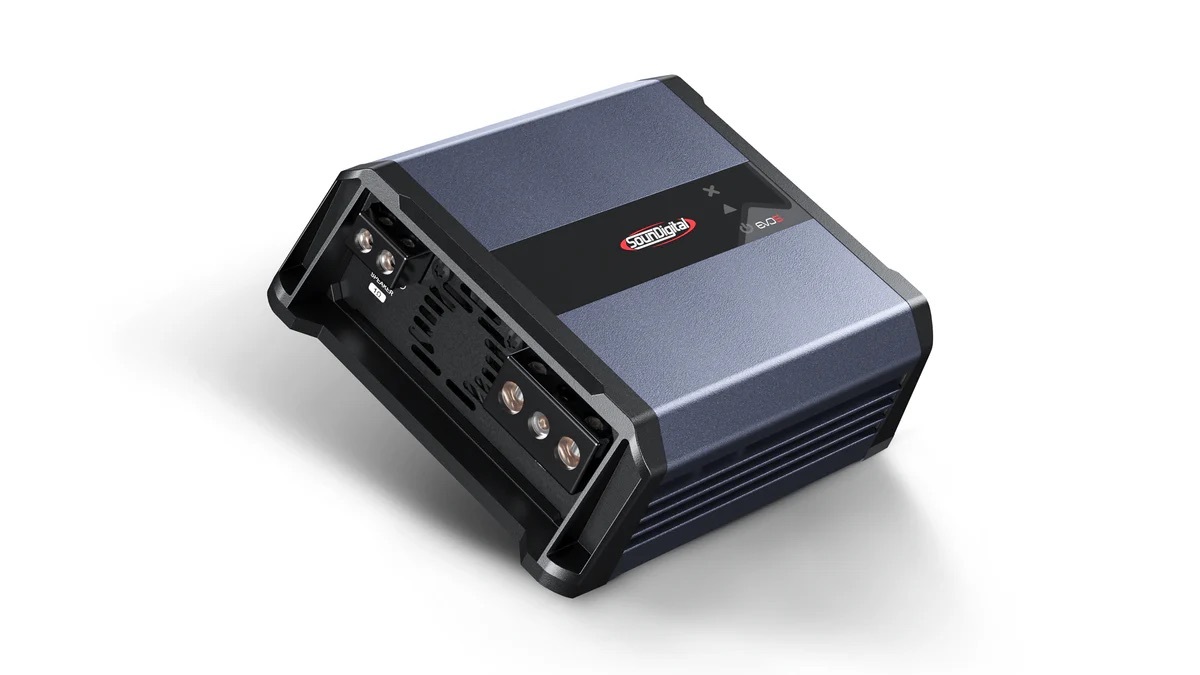

SounDigital 1200.1 EVO 5 - 1 Ohm
2 490 SEK
Mono amplifier
1 Ohm model
1200W
Very small size
High level input
- Snabb leverans
- Personlig support vi svarar snabbt
- Säker betalning med Klarna
Behöver du hjälp att välja rätt? Kontakta oss – vi hjälper dig bygga rätt system direkt.
Beskrivning
Art.nr: SD1200.1-1 EVO5
The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel.<br />
<br />
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 4Ω: 1 X 522 WRMS
Power @ 2Ω: 1 X 792 WRMS
Power @ 1Ω: 1 X 1200 WRMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz ~ 80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
9V ~ 16V
Signal-Noise Ratio:
95dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
1Ω: 54A
2Ω: 52A
Current Draw (Max):
1Ω: 108A
2Ω: 105A
Total Efficiency:
1Ω: 88%
2Ω: 91%
Damping Factor:
2000
Power Cable:
16mm² (5 AWG)
Audio Output Cable:
1Ω: 2 x 4 mm² (6 AWG)
2Ω: 2 x 2,5 mm² (13 AWG)
Recommended Fuse (Music):
70A
Recommended Battery:
70Ah
Width:
13.6 cm / 5.4 in
Length:
18 cm / 7.1 in
Height:
5.48 cm / 2.1 in
Weight:
1.12 Kg.
