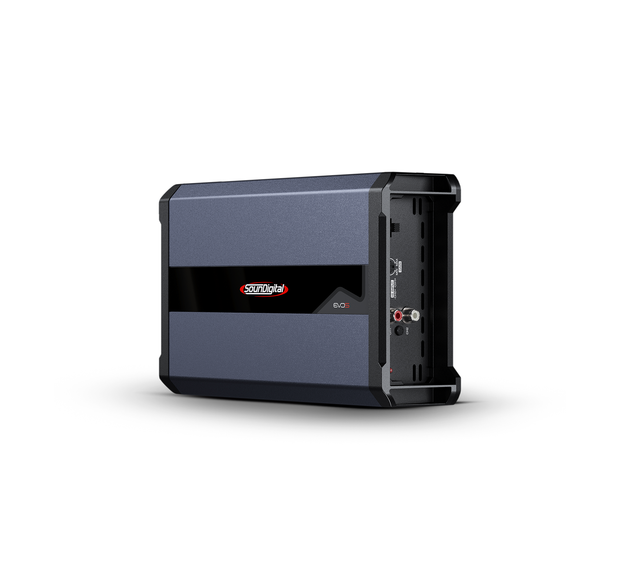

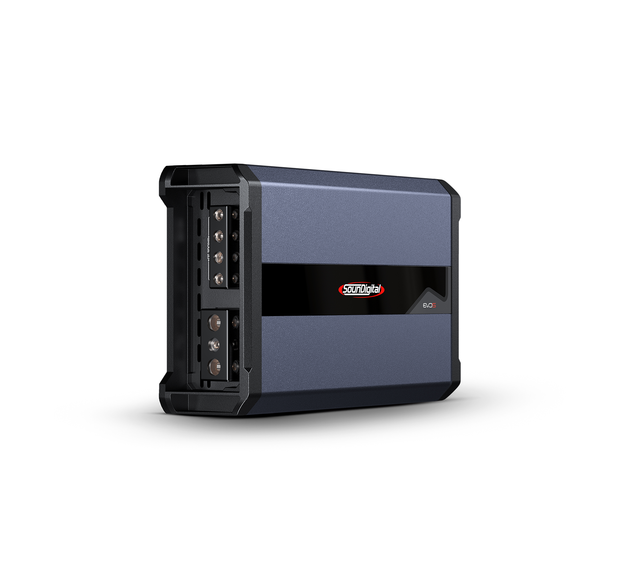

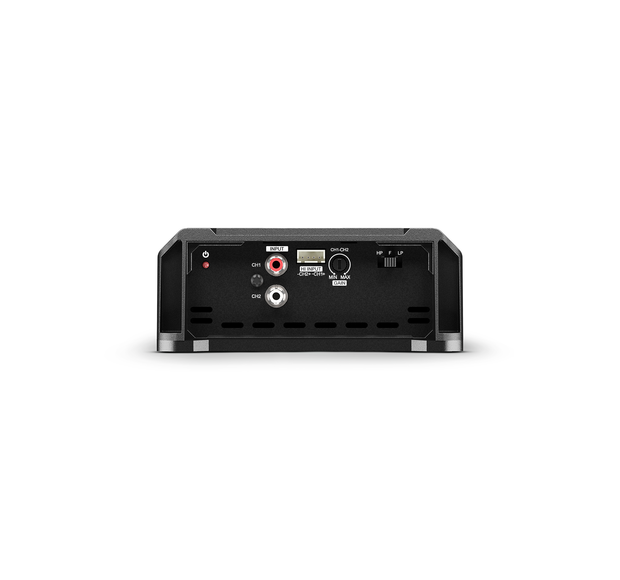

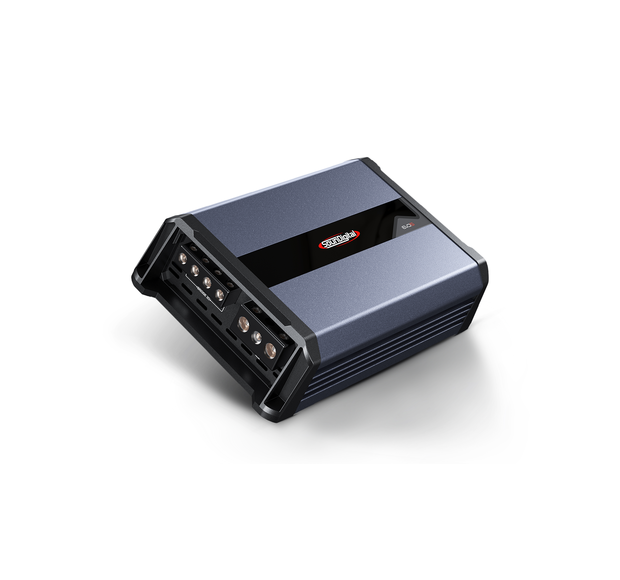

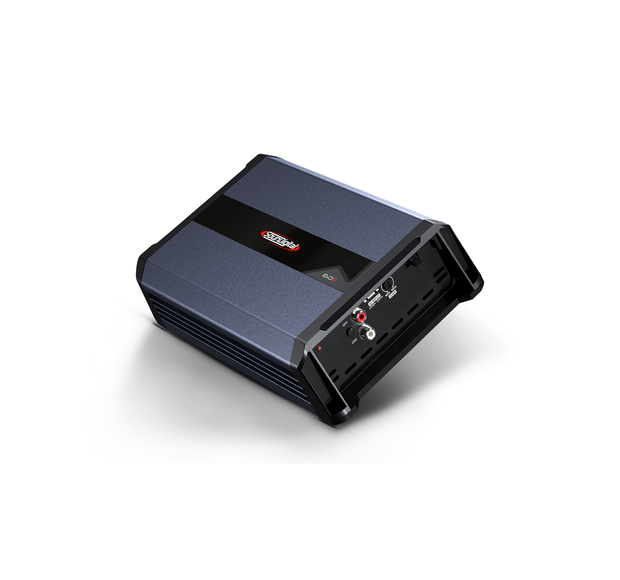

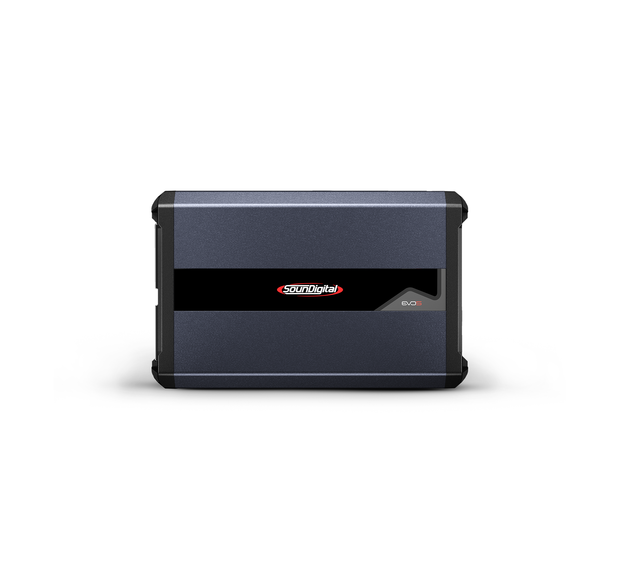

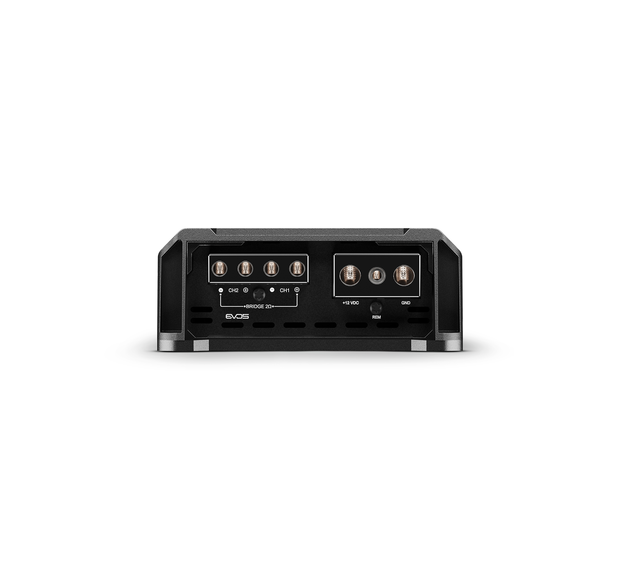

SounDigital 2000.2 EVO 5 - 2 ohm

The 2000.2 EVO 5 is a compact, modern amplifier that delivers 2000W RMS of power distributed over 2 channels. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Power @ 1Ω: 2 X 1000W Power @ 2Ω: 2 X 660W Bridge Power @ 2Ω: 1 X 2000W Bridge Power @ 4Ω: 1 X 1320W Frequency Response (-3dB): 10Hz ~ 20kHz Low Pass Filter (LP -12dB/8): 80Hz High Pass Filter (HP -12dB/8): 80Hz Operating Voltage: 8V ~ 16V SNR: 90dB Input Sensitivity: 0.2 ~ 4V Current Draw (Music): 2Ω: 89A 4Ω: 88A Current Draw With Resistive Load (1kHz @ 12.6V): 2Ω: 178A 4Ω: 176A Total Efficiency: 2Ω: 89% 4Ω: 90% Damping Factor (@100Hz Rated Impedance): 200 Minimum Audio Output Impedance: 2Ω: 1 ohm 4Ω: 2 ohms Minimum Bridge Impedance: 2Ω: 2 ohm 4Ω: 4 ohms Recommended Fuse (Music): 100A Recommended Battery (Music): 100Ah Width: 5.4 in / 13,6 cm Length: 8.9 in / 22,7 cm Height: 2.2 in / 5,5 cm Weight: 3.39 lb / 1,54 Kg.
