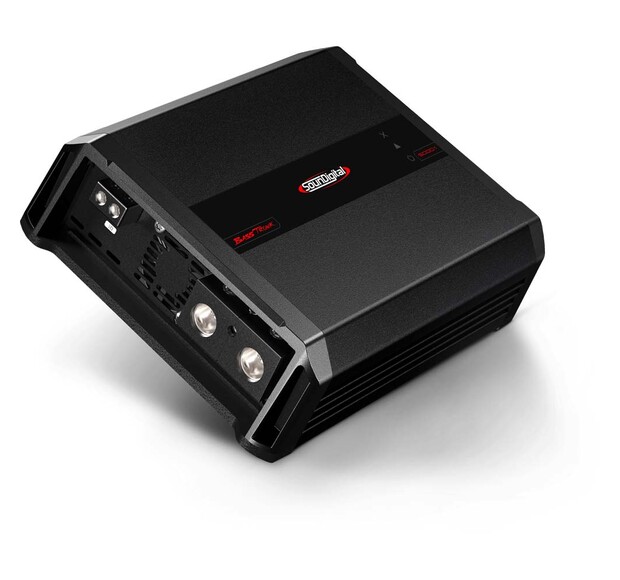

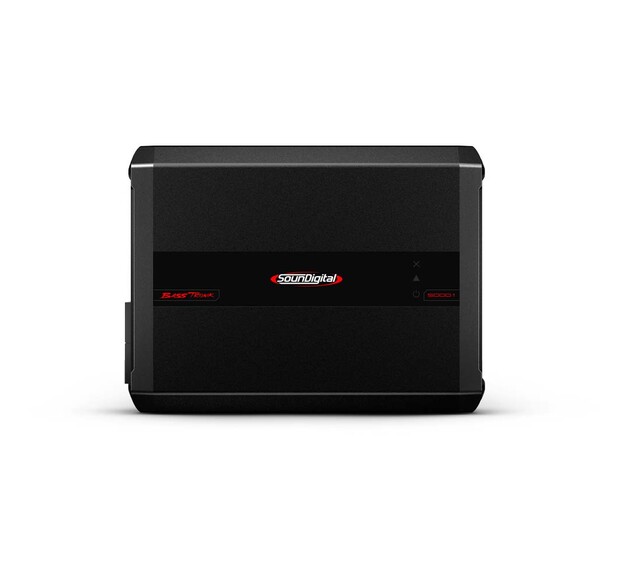

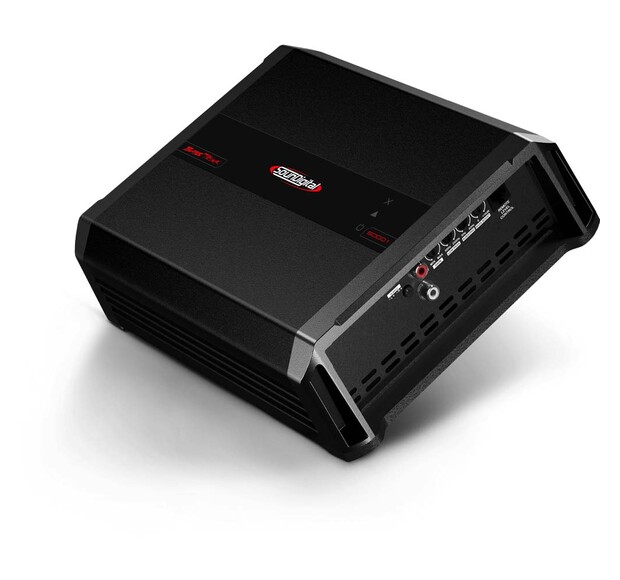

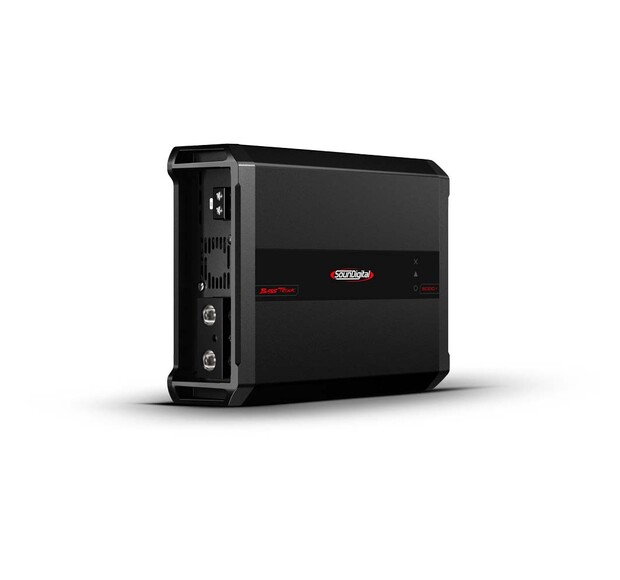

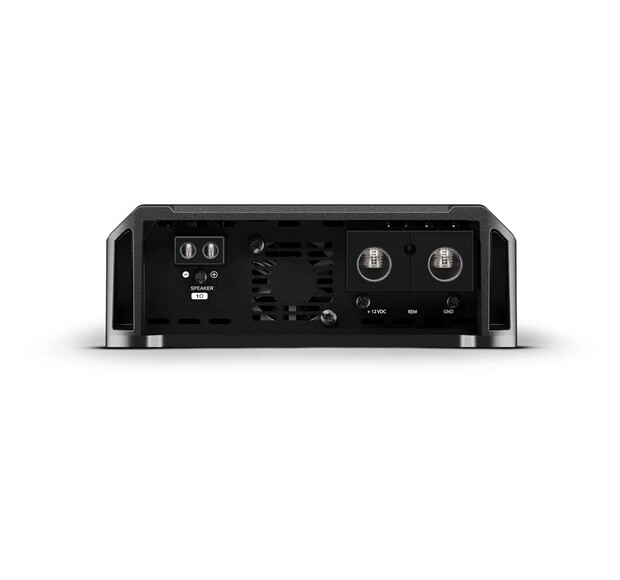

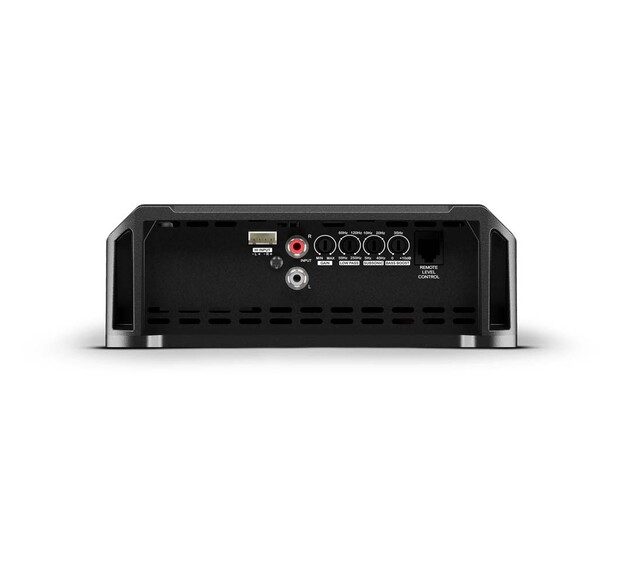

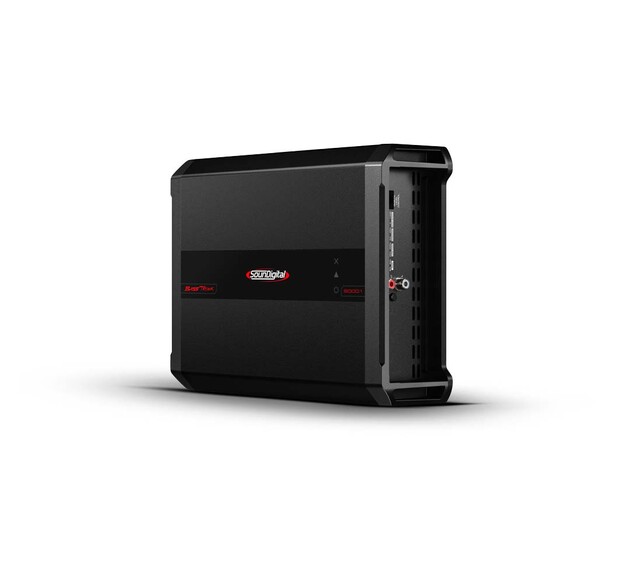

SounDigital 5000.1 BASSTRONIK - 1 Ohm

The Basstronik series is designed for more powerful and direct bass reproduction. This new series is designed for playing heavy subwoofers / mid-basses, which is why SounDigital has upgraded the power supply of the amplifiers to be the most biggest and most stable ever used in their amplifiers! The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range. With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation. The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere. Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation. Power @ 4Ω: 1 X 2100 WRMS Power @ 2Ω: 1 X 3300 WRMS Power @ 1Ω: 1 X 5000 WRMS Frequency Response (-3dB): 5Hz ~ 250Hz Subsonic Filter: 5Hz ~ 40Hz Low Pass Filter (12dB/octave): 50Hz ~ 250Hz Bass Boost: 0dB ~ 10dB @ 30Hz Operating Voltage: 10V ~ 16V Signal-Noise Ratio: 100dB Input Sensitivity (RCA): 0.2V ~ 2V Input Sensitivity (High Level input): 1.5V ~ 15V Current Draw (Music): 248A Current Draw (Max): 496A Total Efficiency: 80% Damping Factor: 2000 Power Cable size: 95mm² Speaker Cable size: 10mm² Remote Cable size: 1.5mm² Recommended Fuse (Music): 250A Recommended Battery: 250Ah Width: 180.6 / 7.1 in Length: 254mm / 9.9 in Height 63.2mm / 2.5 in
